The Kelly bar connects the rotary drive of a rotary drilling rig to the drilling tool, transmitting torque and axial forces during drilling and extraction. Its design directly affects drilling performance, load handling, and compatibility with the rig.
The two main types are friction Kelly bars and interlocking Kelly bars. The key difference lies in how they transmit torque: friction Kelly bars rely on friction between telescopic sections, while interlocking Kelly bars use mechanical locking elements to transfer torque between sections.
Choosing between the two depends on the rig’s specifications, required drilling depth, ground conditions, and project requirements. Understanding their structural differences and operating characteristics helps contractors select a suitable Kelly bar for their drilling operations.

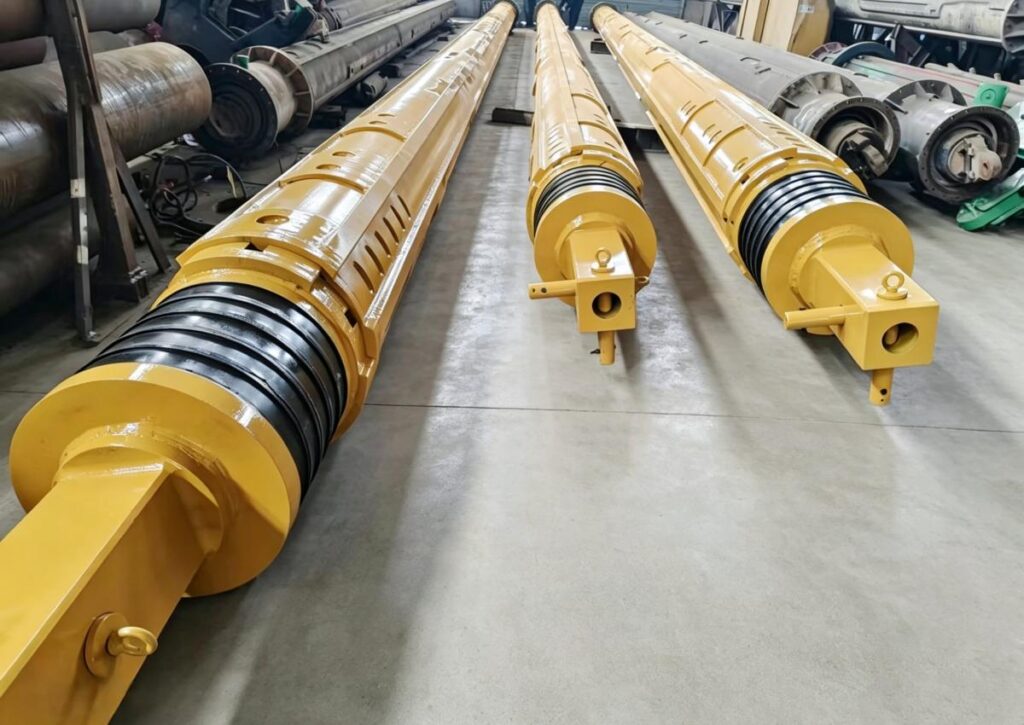

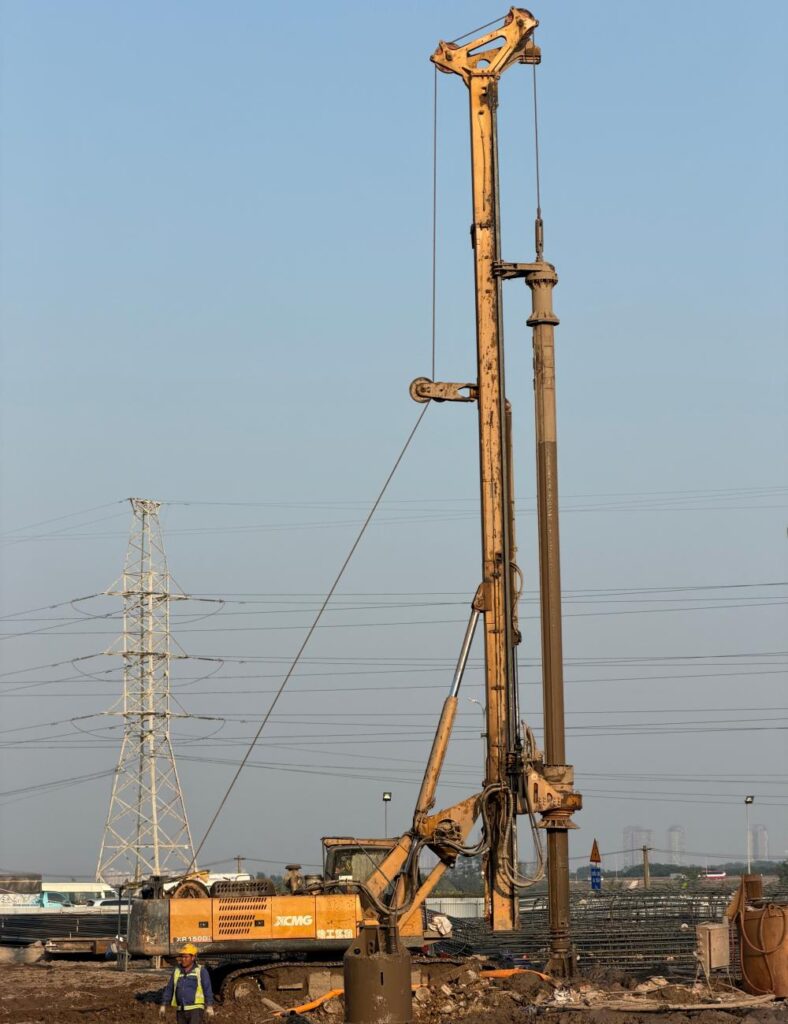

What is a Friction Kelly Bar
A friction Kelly bar transfers torque through friction generated between the drive keys and keyways of adjacent telescopic sections.
Instead of using positive mechanical locks, the nested sections remain in continuous sliding contact. As crowd pressure is applied, the contact surfaces generate sufficient friction to transmit rotational force.
Because the sections are free to slide throughout the drilling cycle, extension and retraction occur smoothly without requiring locking engagement.
This relatively simple mechanism reduces structural complexity while allowing faster telescopic movement.
Structural Characteristics
Typical friction Kelly bars consist of:
- Three to six telescopic sections
- External drive keys
- Internal keyways
- Kelly box
- Adapter
- Wear strips
Kelly bar sections are typically manufactured from high-strength structural steel or alloy steel, selected according to the required load capacity, toughness, weldability, and operating conditions. Material selection varies by manufacturer and component design.
| Material | Key Characteristics | Typical Considerations |
|---|---|---|
| Q355B | Good weldability, toughness, and structural strength | Suitable for structural components where the design requirements permit |
| 27SiMn | High strength and wear resistance when appropriately processed | Used in selected mechanical components subject to demanding loads |
| 42CrMo | High strength, toughness, and hardenability after suitable heat treatment | Suitable for highly loaded components requiring controlled mechanical properties |
Advantages of Friction Kelly Bars
The greatest advantage of a friction Kelly bar is operational efficiency in soft and medium formations.
Because no mechanical locking occurs during extension, drilling cycles are generally faster.
Benefits include:
- Smooth telescopic movement
- Lower manufacturing cost
- Reduced maintenance requirements
- Faster drilling cycles
- Lower overall weight
- Less complicated repair work
For projects involving clay, sand, silt, and weathered soil, friction Kelly bars often deliver excellent productivity.
Limitations of Friction Kelly Bars
The torque transmitted through friction depends on the contact pressure between telescopic sections.
As drilling resistance increases, microscopic sliding can occur between the drive keys, producing additional wear.
In highly abrasive formations such as granite or basalt, this wear accelerates considerably.
Common limitations include:
- Lower maximum torque capacity
- Faster drive key wear
- Reduced efficiency in hard rock
- More frequent inspection requirements
- Limited suitability for extremely deep piles

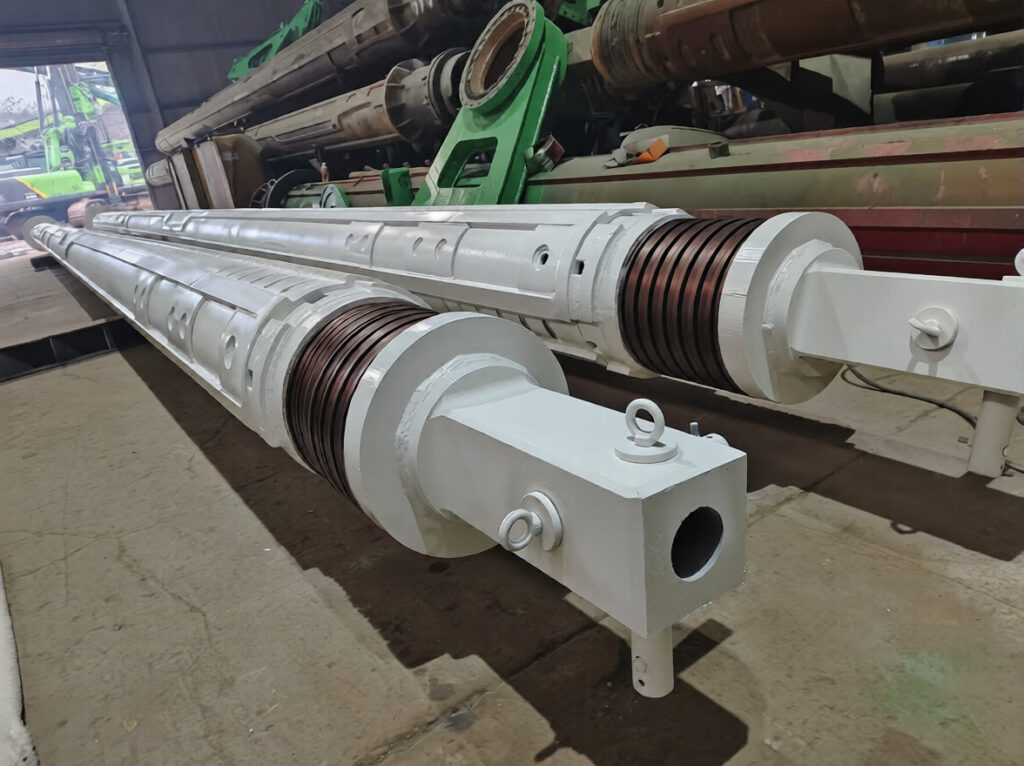

What is a Interlocking Kelly Bar
An interlocking Kelly bar uses a completely different torque transmission principle.
Instead of relying on friction between telescopic sections, each section incorporates precision-machined locking slots.
When fully extended, adjacent sections engage mechanically.
The resulting positive connection allows torque to be transferred directly through steel-to-steel engagement.
This eliminates the possibility of slipping under high drilling resistance.
The locking mechanism significantly increases allowable torque while improving drilling stability.
Structural Characteristics
Compared with friction Kelly bars, interlocking designs include additional precision-machined components:
- Locking grooves
- Locking keys
- Reinforced drive keys
- Heavy-duty telescopic tubes
- High-strength Kelly box
Manufacturing tolerances are considerably tighter because improper alignment may prevent reliable engagement.
Most premium manufacturers machine locking surfaces using CNC equipment to maintain dimensional accuracy within fractions of a millimeter.
Advantages of Interlocking Kelly Bars
Mechanical engagement provides several important performance advantages.
Higher Torque Capacity
Interlocking Kelly Bars transfer torque through mechanical locking shoulders rather than friction, providing higher torque transmission capacity and better performance under demanding drilling conditions. Their actual torsional strength depends on the structural design, material properties, and key dimensions.
Large foundation rigs from manufacturers such as Bauer, Soilmec, SANY, Casagrande, and XCMG commonly use interlocking Kelly bars when drilling hard rock.
Improved Stability
Mechanical locking minimizes torsional deflection.
Reduced twisting helps maintain vertical borehole alignment, particularly for:
- Bridge foundations
- High-rise buildings
- Offshore foundations
- Large diameter bored piles
Improved alignment reduces correction work and increases drilling accuracy.
Longer Service Life in Rock
Although the locking components experience concentrated stress, the drive keys experience significantly less sliding wear than friction systems.
This generally results in:
- Lower wear rate
- Longer maintenance intervals
- More consistent drilling performance
when operating in abrasive geological formations.
Mechanical Comparison
The most significant engineering difference lies in torque transmission.
Friction Kelly Bar
Torque path:
Rotary Drive → Drive Keys → Friction Contact → Next Section → Drilling Tool
Energy losses occur through microscopic sliding between contact surfaces.
Interlocking Kelly Bar
Torque path:
Rotary Drive → Locking Shoulders → Steel-to-Steel Engagement → Next Section → Drilling Tool
Virtually no slipping occurs after locking engagement.
This explains why interlocking Kelly bars can maintain stable torque even under extremely high drilling resistance.
Friction Kelly Bar vs Interlocking Kelly Bar: Engineering Comparison
Selecting a Kelly bar should be based on drilling conditions, rig specifications, and project requirements rather than purchase price alone. While friction Kelly bars perform efficiently in soft and medium formations, interlocking Kelly bars provide greater reliability when drilling deep piles or hard rock formations.
The following comparison highlights the key technical differences.
| Specification | Friction Kelly Bar | Interlocking Kelly Bar |
|---|---|---|
| Torque Transmission | Friction between drive keys | Mechanical locking |
| Maximum Drilling Depth* | 45–75 m | 60–120 m |
| Telescopic Movement | Continuous sliding | Locking and sliding |
| Drilling Cycle Speed | Faster | Slightly slower |
| Hard Rock Capability | Moderate | Excellent |
| Drive Key Wear | Higher | Lower |
| Structural Complexity | Simple | More complex |
| Maintenance Cost | Lower | Moderate |
| Typical Applications | Soil and mixed formations | Hard rock and deep foundations |
*Actual drilling depth depends on the drilling rig, Kelly bar configuration, and geological conditions.
Performance in Different Ground Conditions
Ground conditions have the greatest influence on Kelly bar selection. As drilling resistance increases, the demand for higher torque transmission also increases.
| Ground Condition | Recommended Kelly Bar |
|---|---|
| Clay | Friction |
| Sand | Friction |
| Silt | Friction |
| Soft Gravel | Friction |
| Dense Gravel | Friction / Interlocking |
| Weathered Rock | Interlocking |
| Limestone | Interlocking |
| Granite | Interlocking |
| Basalt | Interlocking |
In soft formations such as clay and sand, drilling resistance is relatively low. A friction Kelly bar provides smooth extension and shorter drilling cycles, improving productivity.
In hard rock formations, drilling tools require substantially higher torque to maintain penetration. Mechanical locking prevents energy loss and allows the rotary drive to deliver its full drilling capacity.
Drilling Efficiency Comparison
Drilling efficiency depends on ground conditions, rig torque, crowd force, and drilling tools. The Kelly bar also affects how effectively torque is transferred during drilling.
Soft Soil
Friction Kelly bars are suitable for clay, silt, and loose sand. Their smooth telescopic movement helps maintain efficient drilling cycles.
Mixed Ground
Both types can be used in mixed ground. Selection depends on drilling resistance, rig torque, and expected operating loads.
Hard Rock
Interlocking Kelly bars are generally more suitable for hard rock formations such as granite, basalt, and limestone. Their mechanical locking system provides reliable torque transmission under high drilling loads.
Friction Kelly bars can also be used when their rated capacity meets the drilling requirements.
Matching the Kelly Bar to the Rotary Drilling Rig
Kelly bars should always match the drilling rig’s technical specifications.
Key parameters include:
- Rotary torque
- Crowd force
- Pull-down force
- Main winch capacity
- Kelly box dimensions
- Maximum drilling depth
Selecting the Right Kelly Bar
Before purchasing a Kelly bar, contractors should evaluate the following factors:
- Maximum rotary torque of the drilling rig
- Required drilling depth
- Geological conditions
- Pile diameter
- Drilling tools to be used
- Maintenance capability
- Project duration
Choosing a Kelly bar that is too light for the application may result in excessive wear and reduced productivity. Conversely, using a heavy-duty interlocking Kelly bar for routine soft-soil drilling may increase equipment costs without delivering significant performance benefits.
Frequently Asked Questions
Interlocking Kelly bars are the preferred choice because their mechanical locking system provides higher torque transmission and improved stability in granite, basalt, limestone, and other hard rock formations.
Yes. Friction Kelly bars can drill through weathered rock and some medium-hard formations. However, drilling efficiency decreases as rock strength increases, making interlocking Kelly bars more suitable for demanding conditions.
Friction Kelly bars have a simpler structure and lower maintenance requirements. Interlocking Kelly bars require inspection of the locking mechanism but generally experience less drive key wear during heavy-duty drilling.
Most rotary drilling rigs use Kelly bars with 3 to 6 telescopic sections, depending on the required drilling depth and rig configuration.
The correct Kelly bar should match the drilling rig’s torque output, drilling depth, geological conditions, Kelly box dimensions, and drilling tools. Selecting the appropriate design improves drilling efficiency and extends equipment service life.
