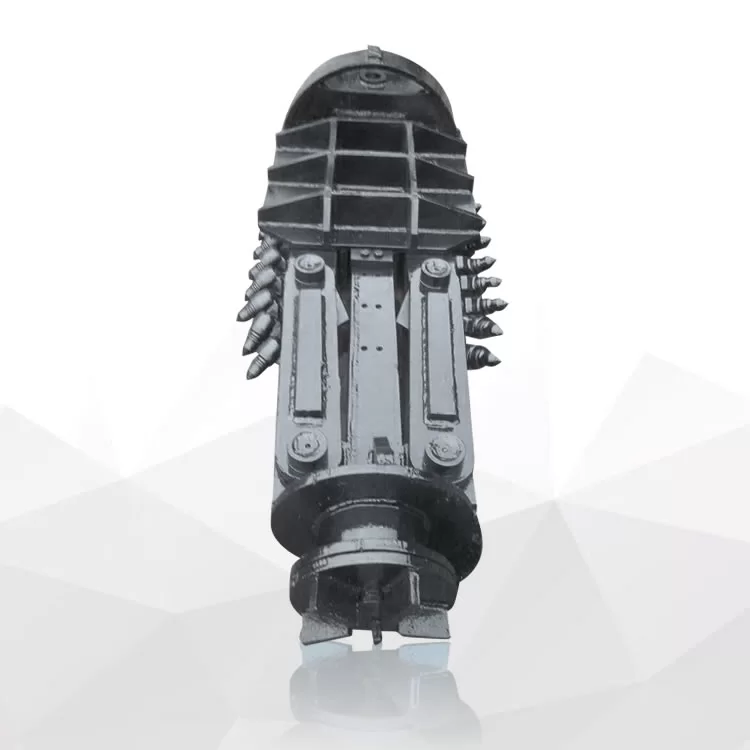

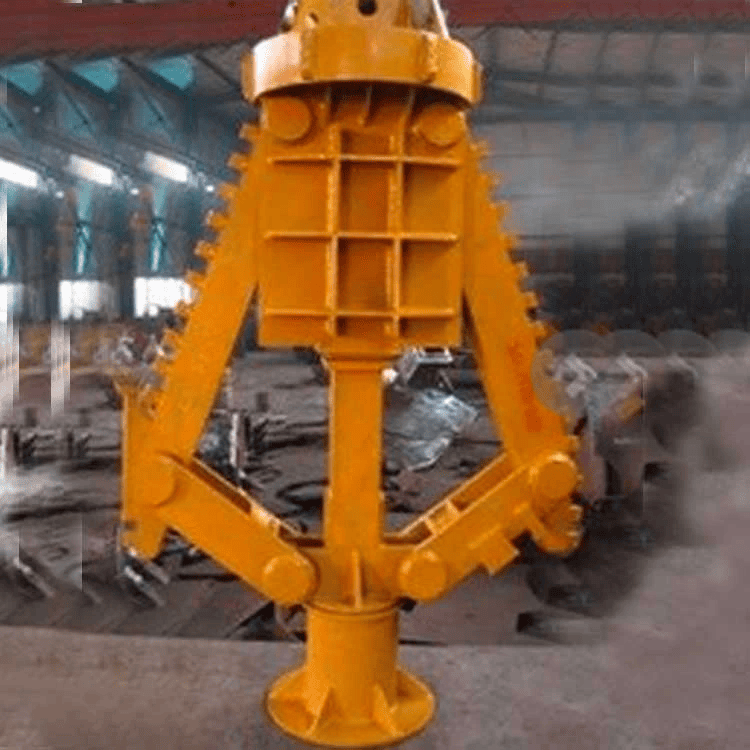

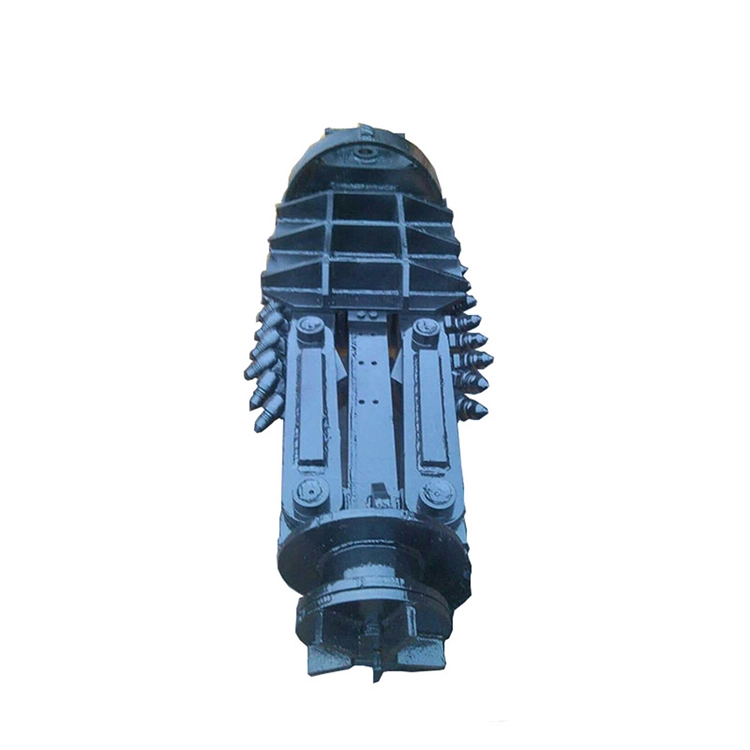

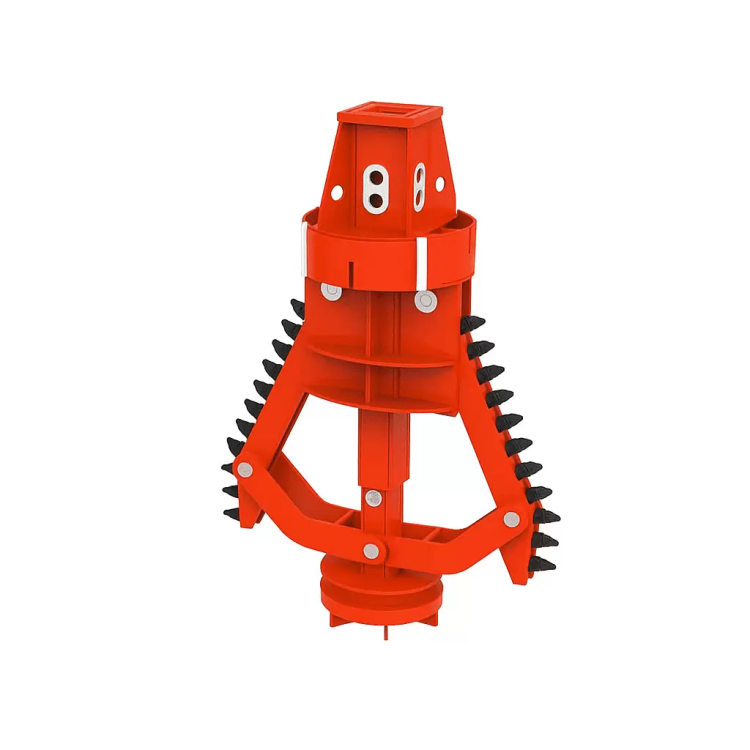

A Heavy Duty Foundation Drilling Belling Bucket is designed for efficient belling and enlargement of boreholes in piling and foundation projects. It features a reinforced structure and high-strength cutting teeth for reliable performance in tough soil and mixed ground conditions. The bucket ensures stable cutting, smooth spoil removal, and accurate borehole enlargement, helping contractors achieve higher drilling efficiency and better foundation quality.
Technical Parameter of Belling Bucket
| Retract DiametersD(mm) | Spread Diameters D(mm) | Retract HeighH(mm) | Spread HeightH(mm) | Number ofLimit Holes | Bullet Teeth Number | Weight(kgs) |
| 600 | 1200 | 3030 | 2670 | 1 | 20 | 1230 |
| 800 | 1600 | 3382 | 2960 | 1 | 32 | 1615 |
| 900 | 1800 | 3406 | 2957 | 1 | 22 | 1800 |
| 1000 | 2000 | 3 | 30 | 2400 | ||
| 1200 | 2000 | 4 | 30 | 2790 | ||
| 1500 | 3000 | 4 | 32 | 4500 |
Customizable Items
Model DIA. Custom : design various cutting diameter based on demand, like φ950、φ1050 etc.
Key Component Reinforce Custom : strengthen the key component to extend life cycle;
Swing No. Custom : double swing or trible swing design as demand;
Kelly Box Custom : custom kelly box size based on the kelly bar, like 130*130, 150*150,200*200 etc;
Limit Hole No. Custom : add more limit hole to satisfy different reaming diameter demand.
Cases of Belling Bucket
Production Line
Packing and Delivery
Jobsite
