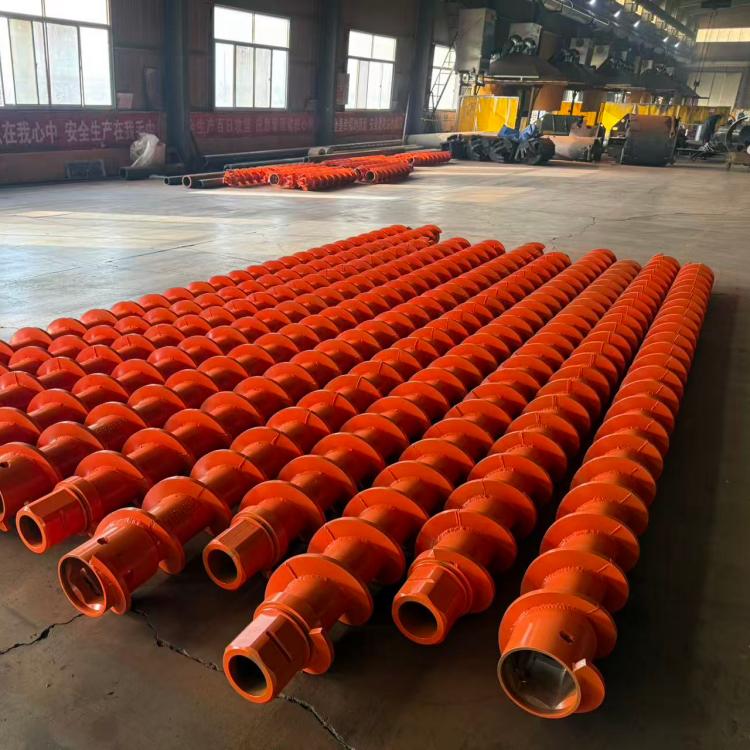

continuous flight auger ready for shipment

continuous flight auger for rotary drilling

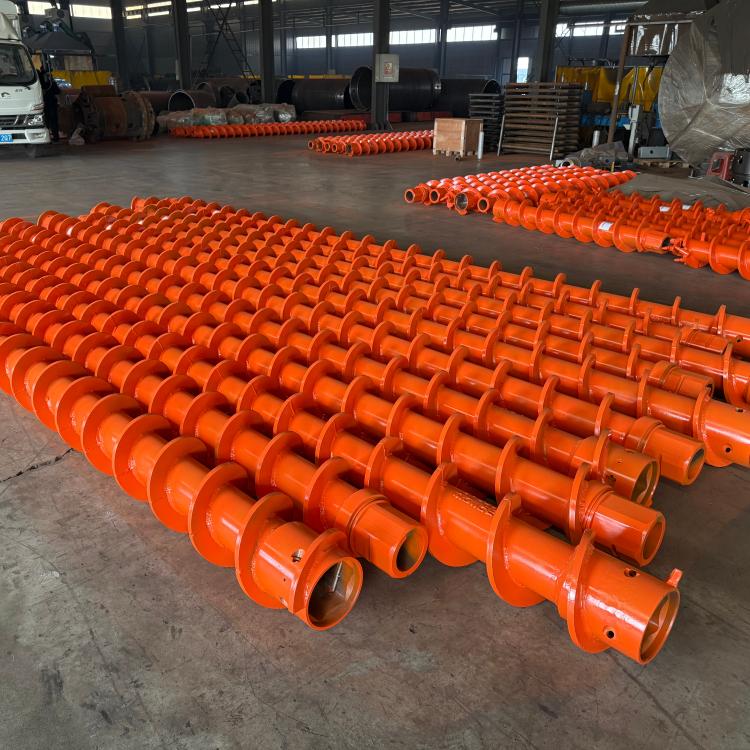

continuous flight auger manufacturing in factory

Continuous Flight Auger CFA dimensions and technical parameters

Continuous Flight Auger (CFA) for Deep Foundation

Feature:

Hollow-Stem Design – Allows concrete or grout to be pumped through the center during auger extraction.

Continuous Flight – Efficiently conveys excavated material during drilling.

Replaceable Cutting Teeth – Tooth configurations can be selected for different ground conditions.

Heavy-Duty Construction – Designed to withstand the torque, axial loads, and wear associated with CFA piling.

Custom Configuration – Available in different diameters, lengths, flight designs, connections, and cutting structure

DESCRIPTION

A Continuous Flight Auger (CFA) is a hollow-stem drilling tool designed for CFA pile construction. It combines continuous drilling, spoil removal, and concrete placement into one piling process. During drilling, the continuous flights transport excavated material to the surface. At the required depth, concrete or grout is pumped through the hollow stem as the auger is gradually withdrawn to form the pile.
Joint: Hexagonal Joint or Flanged Joint
Wearing Parts: Rock bit C31HD B47K17H/B47K19H/B47K22H/ or soil teeth V19/V20/18T/25T and holder

Applications

CFA augers are widely used for building foundations, infrastructure, bridge foundations, and other piling projects, particularly in soft to medium ground and selected mixed or weathered formations.

Technical Parameter of 600mm CFA Auger

Dia D(mm)	Length L(m)	Hole Dia d(mm)	Pitch P	Pipe dxt	Screw thk T	HEX	Unit Weight kg
φ600	1.5	500	500	180×25	20/30	180	400
φ600	6	500	500	180×25	20	180	1160
