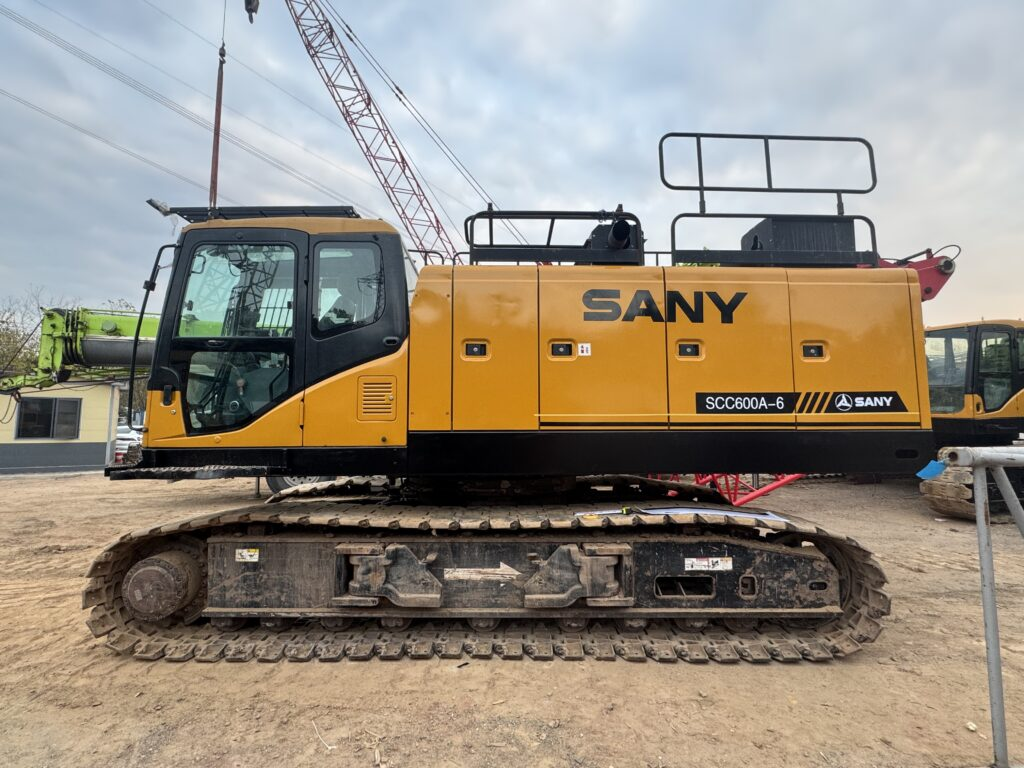

The SANY SCC600A-6 crawler crane is a high-performance 60-ton lifting solution designed for foundation construction, infrastructure development, piling support operations, and heavy-duty material handling projects. With strong lifting capability, reliable hydraulic systems, and optimized transport design, this model delivers stable performance in demanding jobsite conditions such as bridge construction, industrial installation, and energy projects.
Engine System
The SCC600A-6 is typically equipped with a powerful Weichai WP6 diesel engine, providing:
- Rated Power: 140 kW @ 2000 rpm
- Engine Type: 4-stroke, water-cooled, turbocharged
- Emission Standard: Non-road Tier III compliant
- Fuel Tank Capacity: Approx. 400 L
This engine ensures strong torque output, fuel efficiency, and stable performance during continuous lifting operations.
Main Performance Parameters
| Item | Specification |
|---|---|
| Max. Lifting Capacity | 60 t |
| Max. Lifting Moment | 222 t·m |
| Max. Main Boom Length | 52 m |
| Fixed Jib Length | 6.1 – 15.25 m |
| Max. Boom + Fixed Jib | 43 m + 15.25 m |
| Max. Single Rope Force | 8 t |
| Max. Winch Speed | 130 m/min |
| Travel Speed | 1.3 km/h |
| Gradeability | 40% |
These parameters enable efficient hoisting performance and precise load control across various lifting applications.
Structural & Transport Specifications
- Transport Width (Crawler Frame): ≈ 3 m
- Transport Weight (Basic Machine): < 31 t
- Reinforced Track Plate Width: 760 mm
- Low Ground Pressure for soft soil working conditions
- Compact structure for easier site relocation
The SCC600A-6 features a modular design that supports convenient transportation and quick assembly/disassembly on site.
Applications
The SCC600A-6 crawler crane is widely used in:
- Deep foundation and piling support work
- Infrastructure and civil construction
- Industrial equipment installation
- Power plant and port construction
- Heavy material handling operations
